300*300MM 18W LED Panel Light
- LED Brand: Samsung 5630
- Lamp efficiency: 75-85lm/w
- Input voltage: AC85-265V, 50-60 Hz
- Beam Angle: >120°
- Color Rendering Index (CRI): >75
- Power Factor: >0.9
- Work temperature: -20°---40°
- Warranty: 3years
- Dimmable: Yes
- RGB is available
Product Detail:
LED Panel Light Features:
1. Super bright LED with high efficiency (>100lm/W) as light source, saving 65% energy comparing to traditional grid light
2. Stable quality LEDs with little lumen decrease;
3. The Tj for LED is less than 85°C;
4. Long life time(>50000hours);
5. Energy friendly, less heat emission;
6. Free from mercury, lead, and carbon emission;
7. Low maintenance and replacement costs;
8. Fixture surface with anti-static spray, resistance to acid, anticorrosive;
Installation Methods:

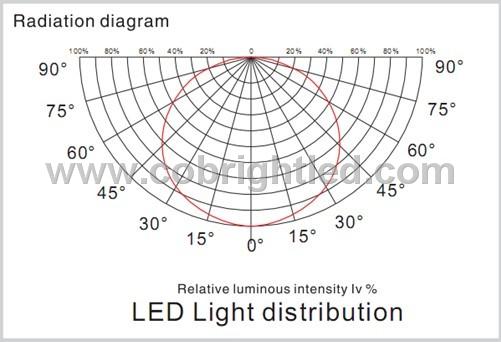

Light Curve
Application:
LED panel light is the best choice for office, meeting room, shopping mall, chain store, car shop, factory, hospital, school and other public entertainment place.
Product Parameters :
|
Product Name: |
300*300MM 18W LED Panel Light |
|
Model: |
CIPL-0303-18W |
|
Led Type: |
Samsung 5630 |
|
Led Qty: |
60pcs |
|
Power: |
18W |
|
Lumen efficiency |
1300-1500LM |
|
Input Voltage: |
AC100-240V,50 - 60 Hz |
|
Beam Angle: |
120º |
|
CCT: |
CW: 5500-6500K / NW: 4000-4500K / WW: 3000-3500K |
|
PF: |
>0.9 |
|
CRI: |
>75% |
|
IP Rate |
IP20 |
|
Material: |
Aluminum |
|
Working Temperature: |
-20 ~ +40℃ |
|
Working Humidity: |
<95% |
|
Lifespan: |
50,000hrs |
|
Warranty: |
3 years |
|
Product Dimension: |
296X296X9mm |
|
Carton Size: |
44.5*35.5*16.5cm |
|
Q’ty per ctn: |
4pcs |
|
G.w per ctn: |
5.2kg |
Photos:
